Description
Key Features & Benefits:
-
Dual Grade Options – GR2 & GR5 – Choose GR2 (commercially pure) titanium for applications requiring superior formability, corrosion resistance, and weldability. Choose GR5 (Ti‑6Al‑4V) for maximum strength, offering tensile strength exceeding 900 MPa with a density approximately 60% that of steel. This flexibility allows you to select the optimal grade for your specific application.
-

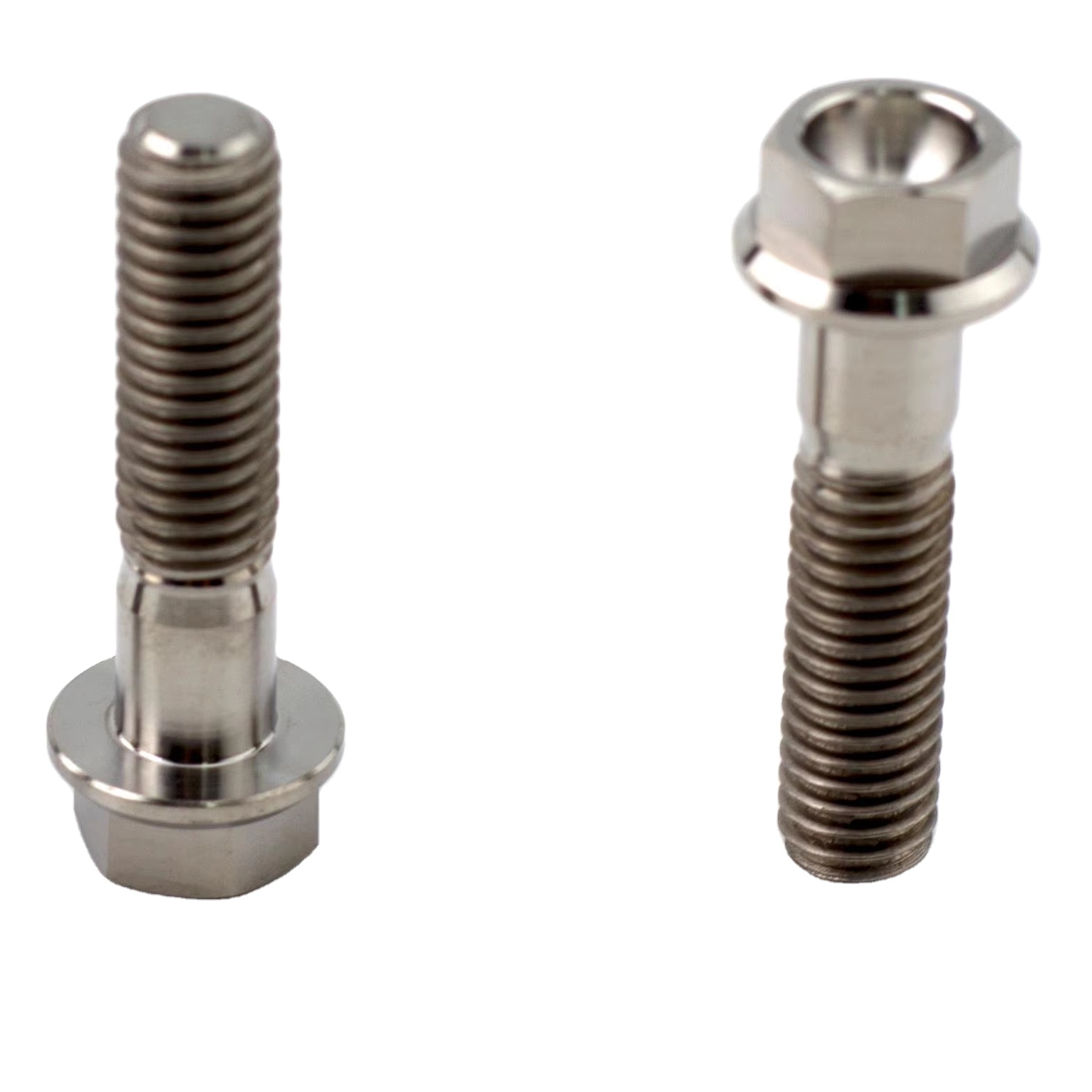

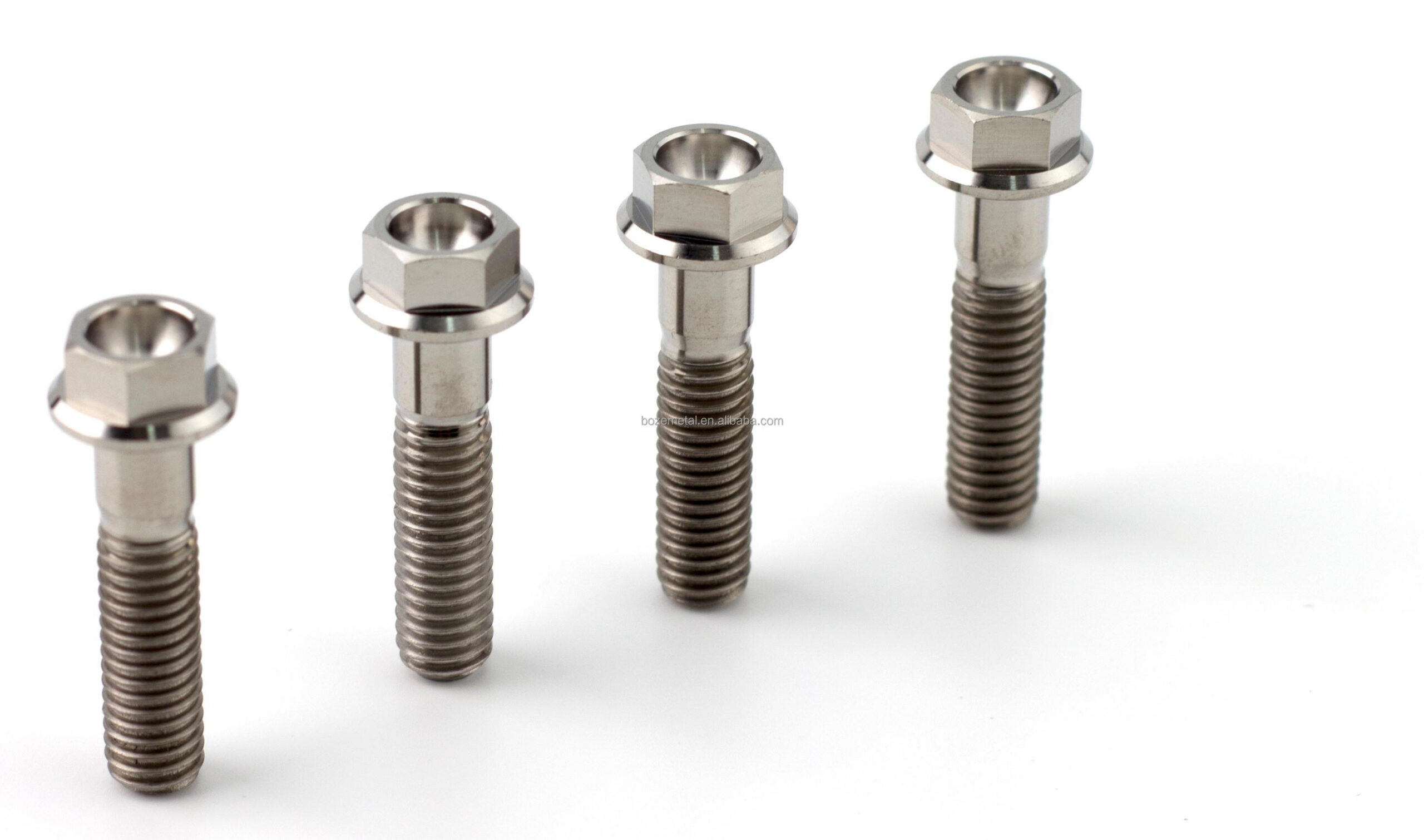

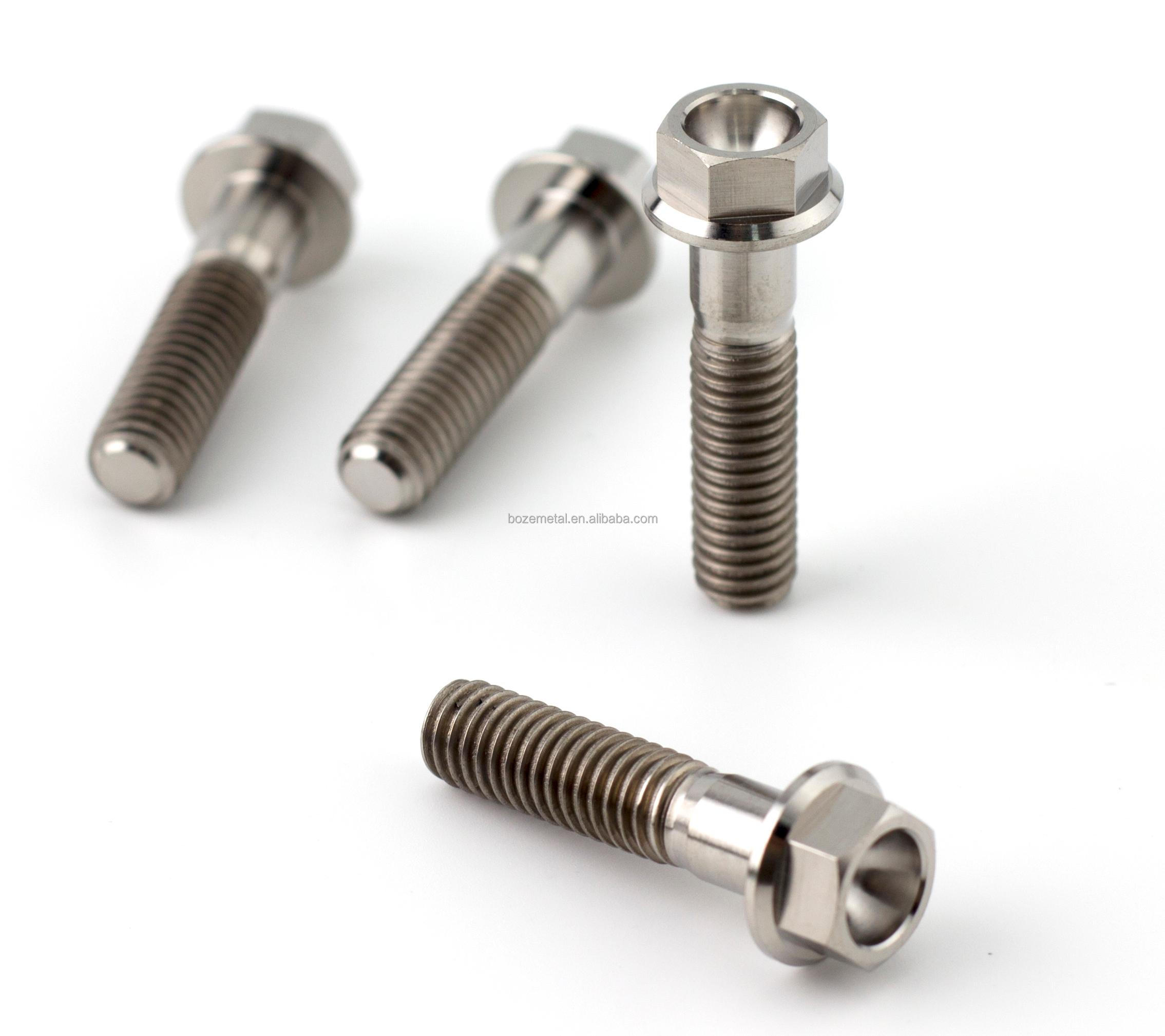

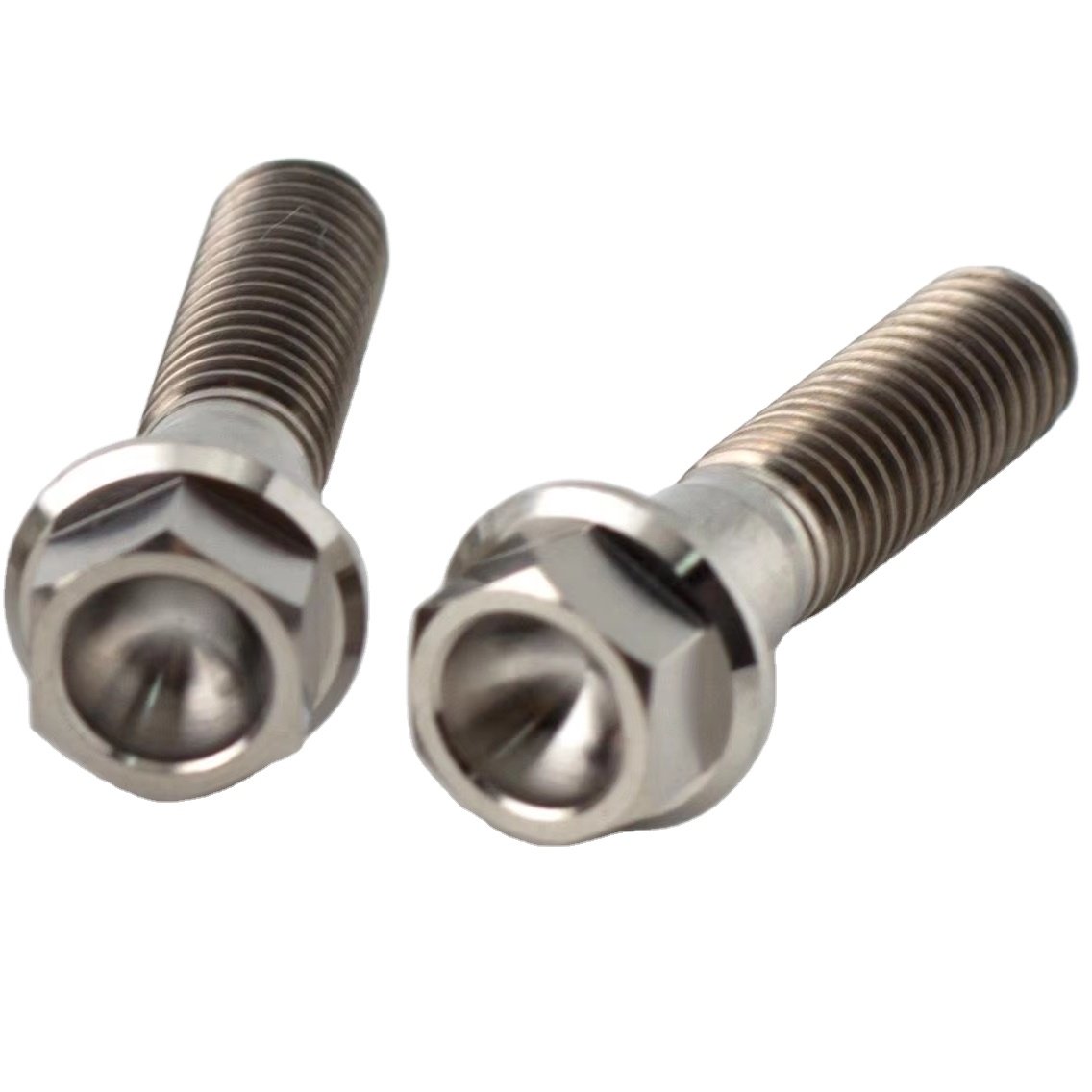

Hex Flange Head Design – The integrated flange acts as a built‑in washer, distributing clamping pressure over a larger area to prevent damage to mating surfaces and eliminate the need for separate washers. The hex drive provides reliable torque transfer with standard wrenches and sockets, simplifying installation and maintenance.
-
Versatile Size Range (M5–M20) – Available in M5, M6, M8, M10, and up to M20, covering a wide spectrum of fastening needs – from light‑duty retail assemblies to heavy‑duty industrial and motorcycle applications. Custom lengths and thread pitches are available to suit your specific requirements.
-
Vibrant Custom Colours – Available in a range of eye‑catching colours: Green, Blue, Pink, Black, Silver, and Rainbow (anodised or PVD coated). These finishes enhance corrosion resistance and surface hardness while allowing you to colour‑code fasteners or match your product’s aesthetic.
-
Corrosion‑Resistant for Long‑Term Reliability – Titanium’s natural oxide layer provides outstanding resistance to rust, moisture, chemicals, and UV degradation. This ensures long‑term durability in both indoor retail environments and demanding outdoor/industrial applications.
-
One‑Stop Customised Service – We offer a comprehensive customisation service: length, grade (GR2 or GR5), thread pitch, head marking, colour, and packaging. Our engineering team works with your specifications to produce exactly what you need – from small prototypes to full production runs.
-
Quality Assurance & Sample Availability – Manufactured under an ISO9001:2015 certified quality system, with rigorous dimensional and mechanical inspections. Samples are available upon request for testing and approval. Packaging is in plastic bags + carton boxes to ensure safe transport.
Technical Specification Table
| Item | Specification |
|---|---|
| Product Name | Titanium Hex Flange Head Bolts |
| Material | Titanium Alloy (GR2 or GR5 – selectable) |
| Grades Available | GR2 (Commercially Pure) / GR5 (Ti‑6Al‑4V) |
| Size Range | M5, M6, M8, M10 (full range M5–M20 available) |
| Head Type | Hexagon Flange Head (integral washer face) |
| Drive | Hexagonal (standard wrench/socket) |
| Colour Options | Green, Blue, Pink, Black, Silver, Rainbow (anodised/PVD) |
| Surface Finish | Anodised / PVD / Natural (uncoated) |
| Tensile Strength (GR5) | ≥ 900 MPa (typical) |
| Tensile Strength (GR2) | ≥ 345 MPa (typical) |
| Density (GR5) | ≈ 4.43 g/cm³ (approx. 60% of steel) |
| Density (GR2) | ≈ 4.51 g/cm³ |
| Application | Retail industry, general industry, motorcycle, automotive |
| Customisation | Length, grade, colour, marking, packaging (OEM/ODM) |
| Advantage | One‑stop Customised Service |
| Sample Availability | Yes (upon request) |
| Packaging | Plastic Bag + Carton Box |
| Certification | ISO9001:2015 |
